Key Feature

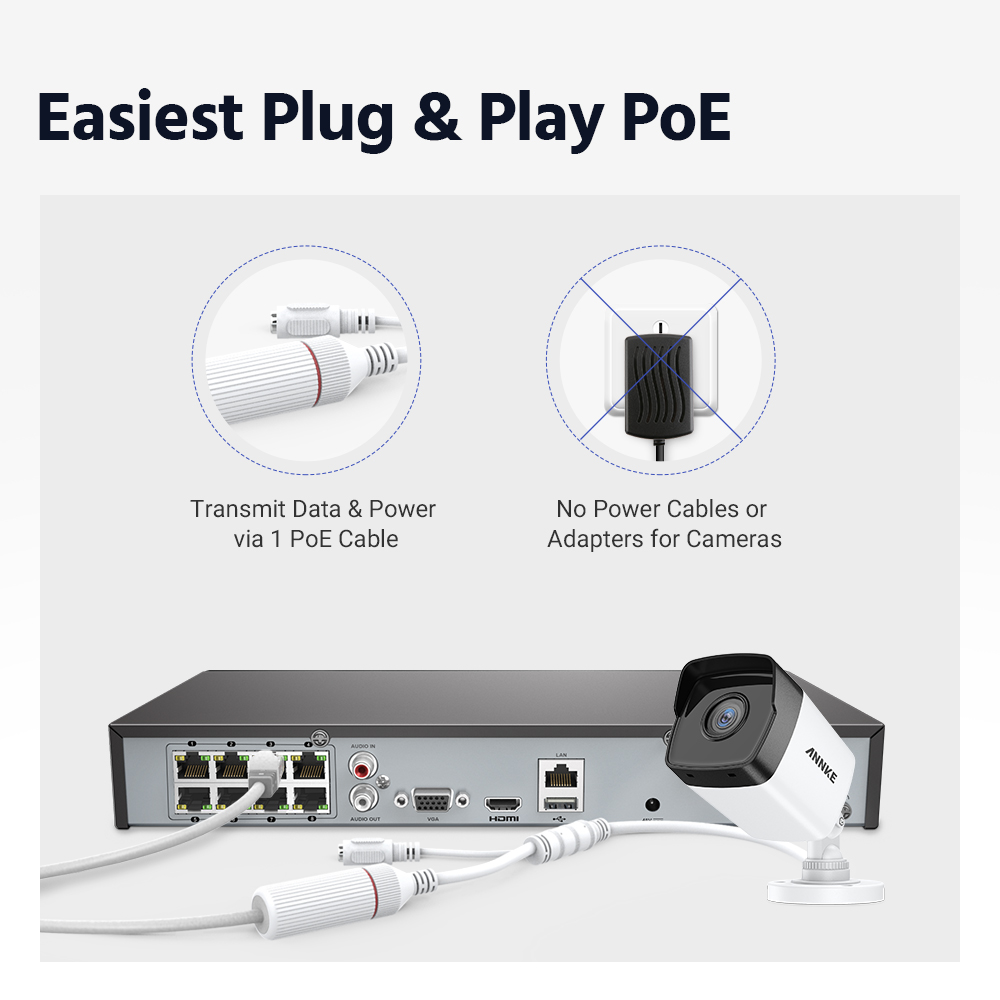

Easy Plug & Play PoE Installation
Plug the PoE camera to the NVR with just a network cable for both data and power transmission. Even a beginner can install the system within minutes. The 8CH 4K NVR supports up to 8 pcs 4K IP cameras for clearer images.
Audio Recording with Built-in Mic
With the built-in microphone, the smart PoE video camera records crisp videos with audio. Watch and hear to know what happened around your home.

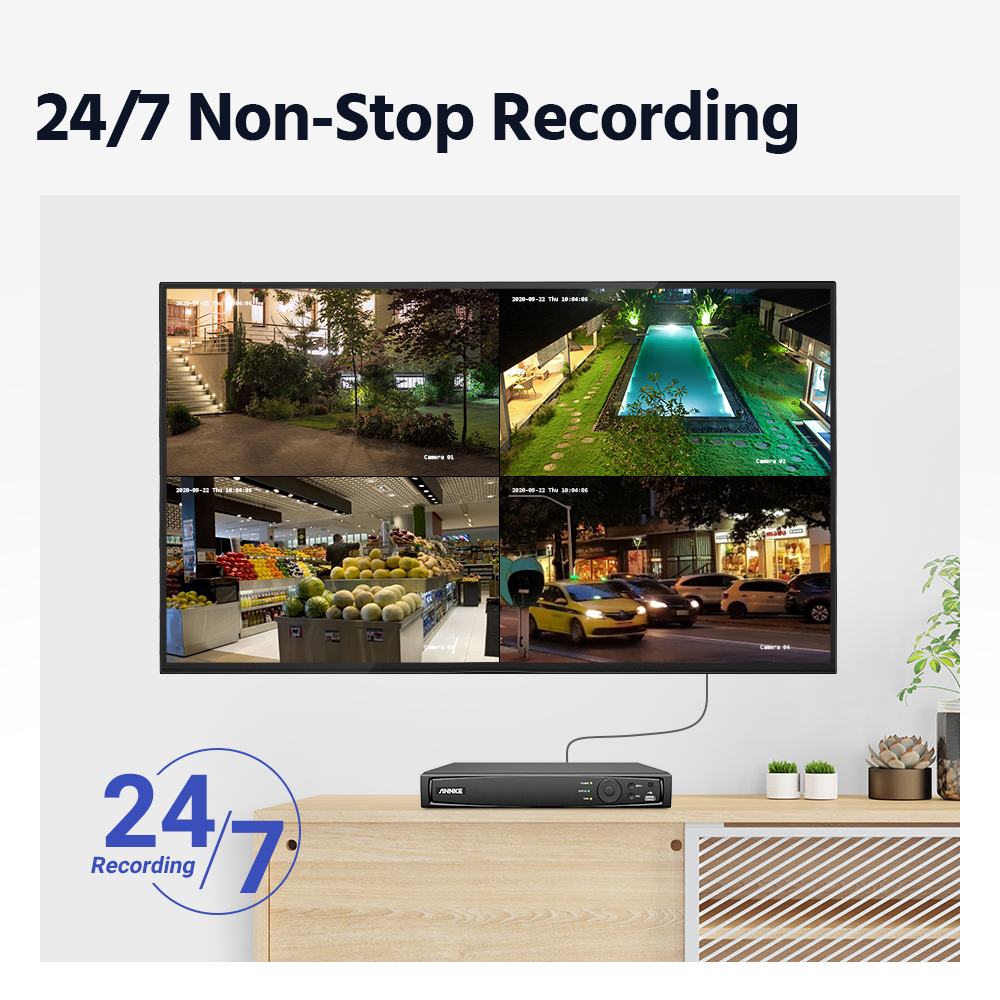

24/7 Record Without Internet
Save the videos to the NVR locally without paying monthly cloud storage fees. Enjoy 24/7 non-stop video recording even without Internet access.
Remote Access
Access the PoE turret IP camera remotely via your phones, PCs, tablets and browsers anywhere. Get instant app pushes & email alerts with snapshots when there are motion events.
NVR Specification
| Video Compression | H.264+/H.264/H.265/H.265+/MPEG4 |
|---|---|
| Video Output | HDMI up to 4K, VGA up to 1080p |
| Incoming Bandwidth | 80 M |
| Max Playback Resolution | Up to 8MP (3840 X 2160) |
| ONVIF Protocols | Support |
| HDD Capacity | Up to 6 TB Capacity for Each HDD |
| PoE | 8 Ports (IEEE802.3af/at) |
| Operating Power | DC 48 V |
| IP Video Input | 8CH PoE |
|---|---|
| Audio Input/Output | 1/1 RCA |
| Max Recording Resolution | Up to 8MP (3840 X 2160) |
| Max Playback Capacity | 4-CH@1080p, 1-CH@8MP |
| HDD | 1 SATA Interface |
| Network Interface | RJ45 X1 (10/100/1000 M) |
| USB | 2X USB 2.0 |
| Weight (Without Hard Disk) | 2.2 lbs/1 kg |
Camera Specification
| Main Stream Max. Frame Rate | "50 Hz: 20 fps (2592 X 1944, 2560*1440), 25 fps (2304 X 1296, 1920 X 1080, 1280 X 720) 60 Hz: 20 fps |
|---|---|
| Video Bitrate | 32 Kbps - 8 Mbps |
| Audio Input | Built-in Microphone |
| Min. Illumination | Color: 0.028 Lux @(F2.0, AGC On) |
| Number of Infrared LEDs | 2 pcs |
| DNR | 3D DNR |
| ONVIF | Support |
| Storage | Built-in microSD/SDHC/SDXC Slot, up to 256 GB |
| Video Compression | H.265+/H.265/H.264+/H.264 |
|---|---|
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC |
| Lens | 2.8 mm |
| Angle of View | horizontal FOV 98?, vertical FOV 53?, diagonal FOV 115? |
| Night Vision Distance | Up to 100 ft/30 m |
| Wide Dynamic Range | 120 dB WDR |
| IR-Cut Filter | Yes |
| Hardware Reset | Yes |
